CHF 197.90

💬 076 792 63 50 (WhatsApp / SMS)

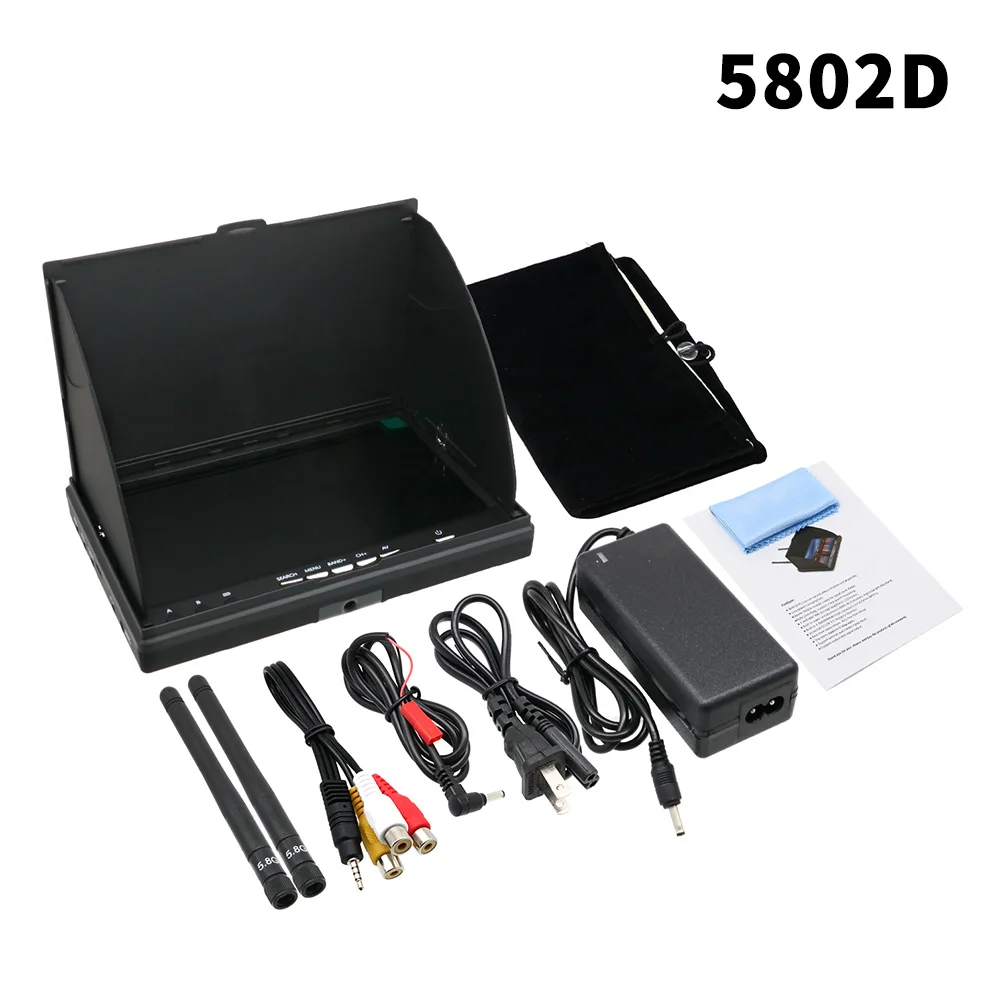

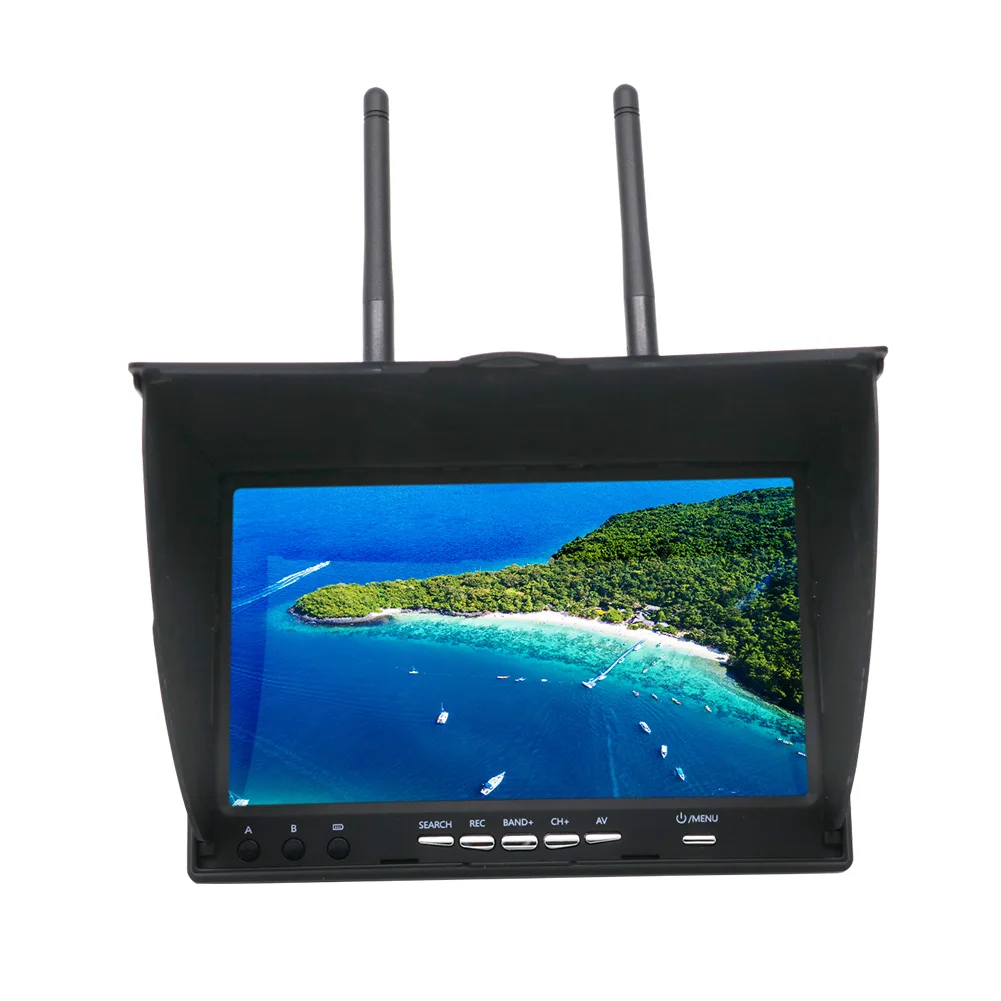

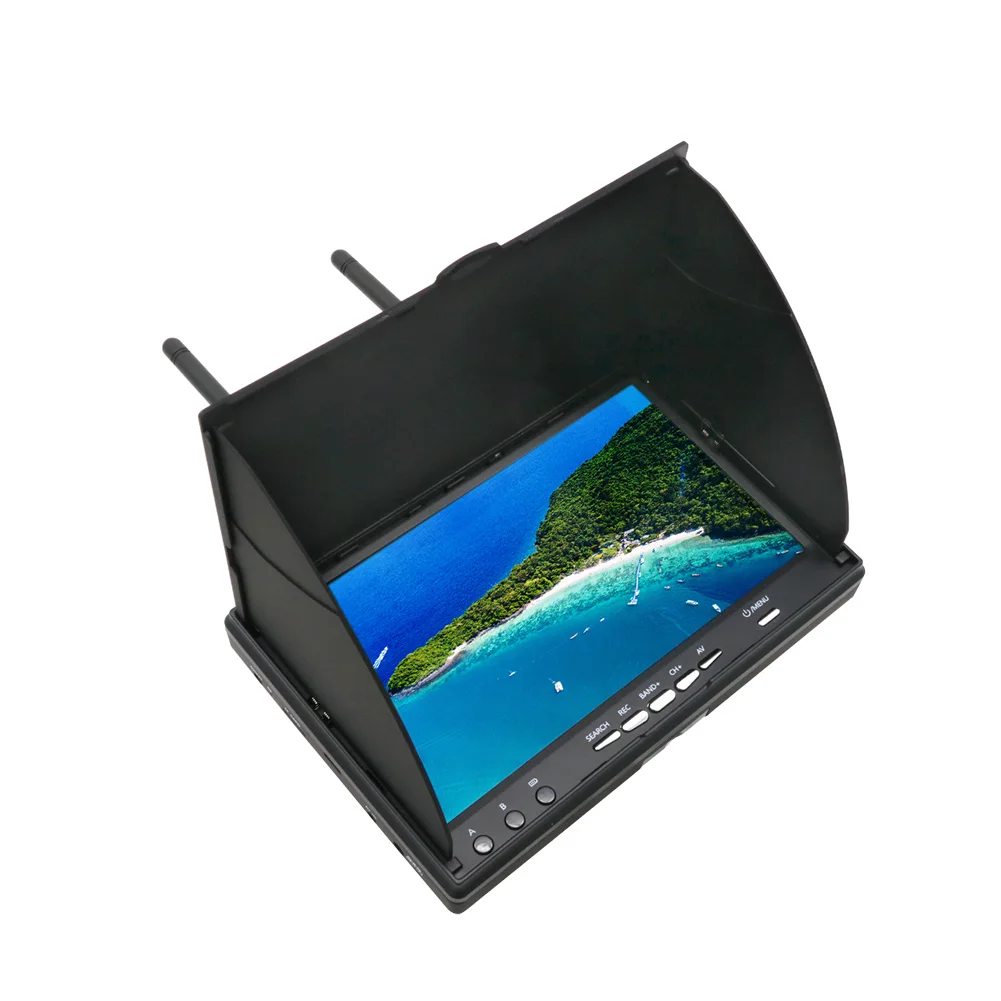

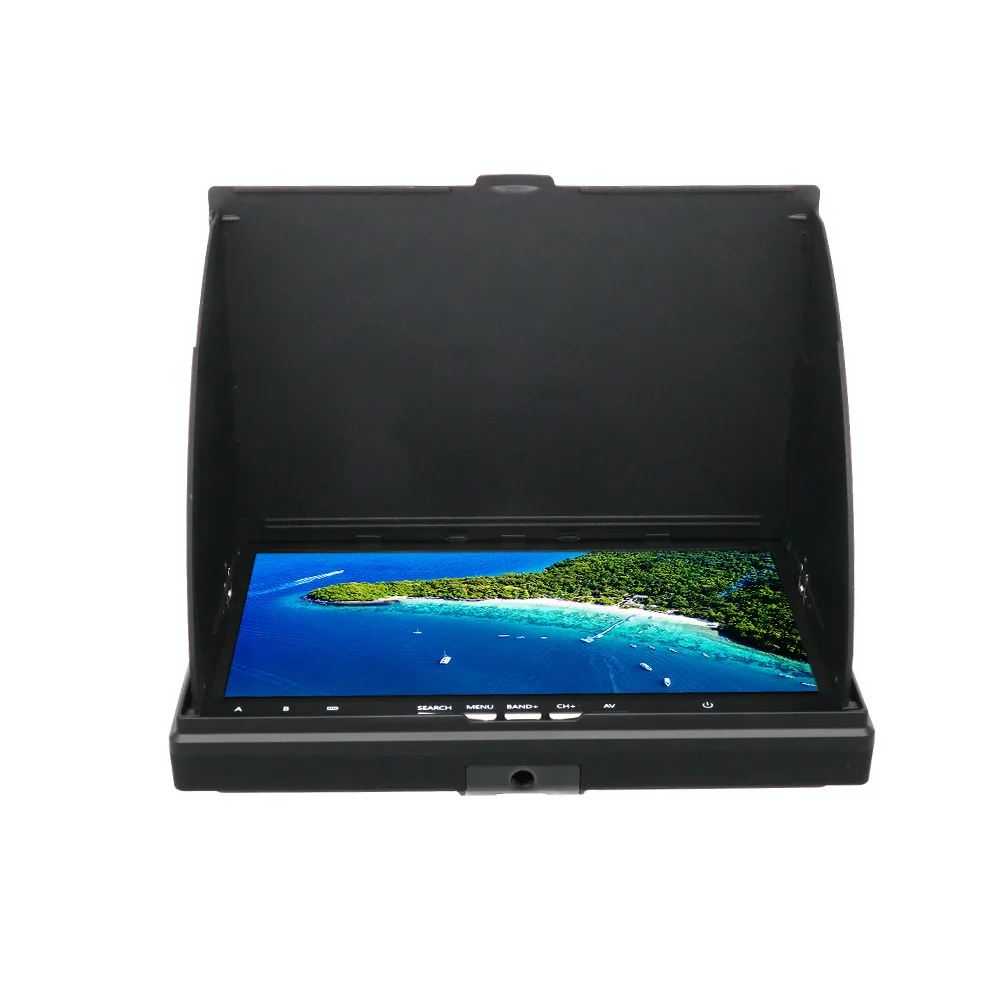

FPV Monitor LCD5802D 5802 7" 7 Inch Monitor LCD Screen 800*480 5.8G 40CH With DVR Built in Battery Video Specification: - Video size: PAL(720*576); NTSC(720*480) - Backlit type: LED dynamic video, MP4, single audio - Storage: Flash 128MB, Mini SD(TF)card, Max.support 32GB - Wireless receive: 5.8G 32CH -90dBm receive sensitivity - Language: 5 - AV output: single track, video output - AV input: single track, video input - DC IN: 7-28V - AAT interface: 2Pin data interface - Antenna interface: RP SMA Inner Needle SMA Head - Data output: 3.5mm - USB communication: USB2.0 Item Name: LCD5802D Monitor Built-in 5.8Ghz Dual diversity receiver automatically for best reception Built-in 2CH 5.8Ghz AV output and 1CH AV input Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V Work status OSD display : RSSI indication ; Battery indicator;Channel indication A key to automatic signal search Support Chinese and English menu Format: JPEG, AVI Screen size: 7” Screen type: TFT LCD Screen/long life, LED backlight Resolution: 800*480 Brightness: 600cd/m2 View Angle:140/120degree (Horizontal/Vertical) Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm) Working Voltage: DC 7~16V Power Consumption: max 650 mA @12V Battery charging current : 850mA @12V ( max ) Working temperature: -10℃~+ 65 ℃ Connectors:RP-SMA female(outer needle) Antennas Connectors:RP-SMA male (inner hole) Support up to 32G , C10 SD Card. Features: With DVR function Built-in Dual Receiver for best reception Dual buffered AV outputs Not affect by 2.4GHz R/C Radios AV Receiver with Diversity inputs Small, light weight, durable 5 Bands and total 40 Channels Built-in battery , easy to carry and outdoor use A key to automatic signal search,Simple operation Work status OSD display:Always be aware of the device working condition. Notice: It can't receive 2 different channels at the same time
