FOXEER FPV-Antenne Pagode Pro 5,8 GHz 3 dBi Omni-Antenne RHCP SMA RP-SMA 68 mm 86 mm 150 mm für RC FPV Racing Freestyle Drohnen
Preis in CHF inkl. Versand · Lieferung in der Regel innert 2 Wochen

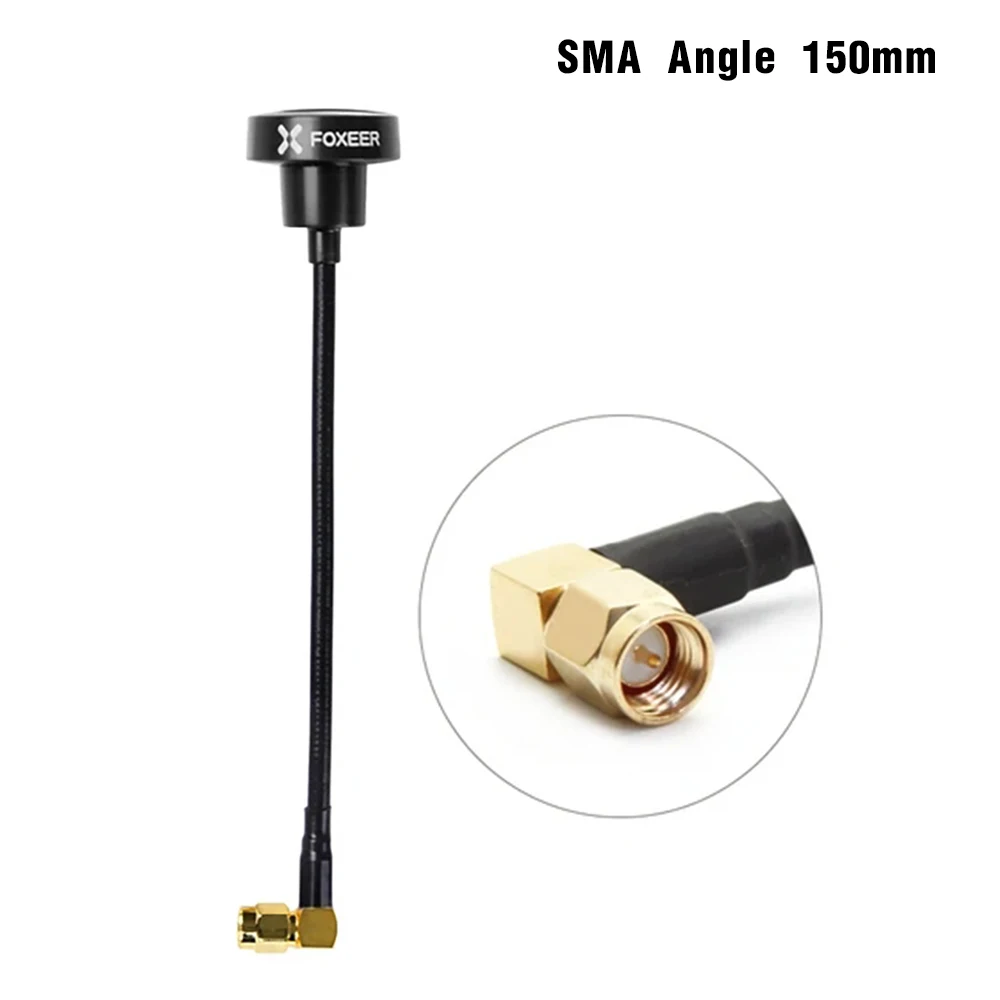

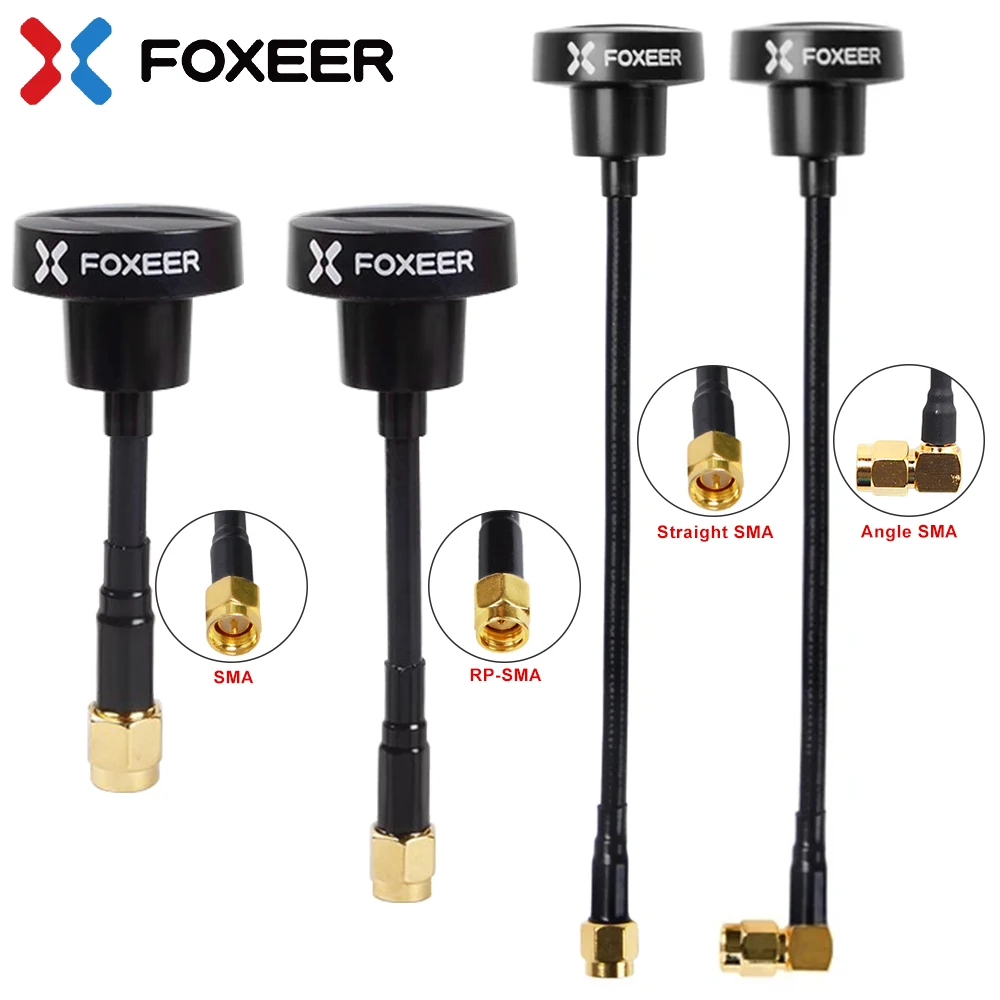

FOXEER FPV Antenna Pagoda Pro 5.8GHz 3dBi Omni Antenna RHCP SMA RP-SMA 68mm 86mm 150mm for RC FPV Racing Freestyle Drones Quadcopeter TX/RX DIY Parts Features: 1. Foxeer newest 5.8GHz 3dBi Pagoda antenna for FPV multicopter TX/RX. 2. Omnidirectional, suit for 5.8G AV transmitter and receiver with high efficiency. 3. 5.8GHz working frequency and 500MHz (5.5 - 6.0 GHz) bandwidth range. 4. Matching: Return Loss (S11) ＜-20 dB, VSWR ＜1.22 (Center Frequency). 5. Low feeder loss, easy to install, can be bent atany angle and maintain. Descriptions: Foxeer FPV antenna 5.8Ghz pagoda RHCP omnidirectional for FPV quadcopeter TX/RX. Flexible bend, DIY parts for RC FPV Freestyle Drones VTX Goggles. Specification: Center frequency: 5.8 GHz Bandwidth: 500 MHz (5.55 – 6.05 GHz) Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency) Axial ratio: < 1.3 Gain: 3dBi Radiation efficiency: 95% Polarization: RHCP Connector: SMA/RP-SMA/UFL/MMCX for optional Package included: 1 x Foxeer Pagoda Pro Antenna Note: Only the above package content, other products are not included. 1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. 2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks! Before purchase: 1.All the goods are ready stock, we will arrange the shipment at once if we receive the order. 2.Please read the item description, if you have any question, do not hesitate to contact us. 3.No warranty,if you receive a defect item,please contact us at once with item picture. 4.Use the vouchers for more saving. After purchase: 1.If you are satisfied,please express your use feeling. 2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item
Gut zu wissen
Passform & Montage
Beachten Sie die Vorschriften für Drohnenflüge in der Schweiz. Angaben zu Flugzeit, Reichweite und Kameraauflösung sind Herstellerangaben und hängen von den Bedingungen ab.
Für Funkgeräte gelten in der Schweiz Vorgaben zu Frequenzen und Sendeleistung. Informieren Sie sich vor der Inbetriebnahme und stellen Sie nur zulässige Frequenz- und Leistungswerte ein.
Aussehen & Lieferung
Farben und Grössenverhältnisse können je nach Bildschirm leicht von der Abbildung abweichen.
Der Versand erfolgt direkt durch unseren Lieferpartner. Die Lieferung dauert in der Regel bis 2 Wochen, in seltenen Fällen bis 3 Wochen. Alle Preise in CHF, Versand inklusive. Versand & Lieferung →
